Mô tả

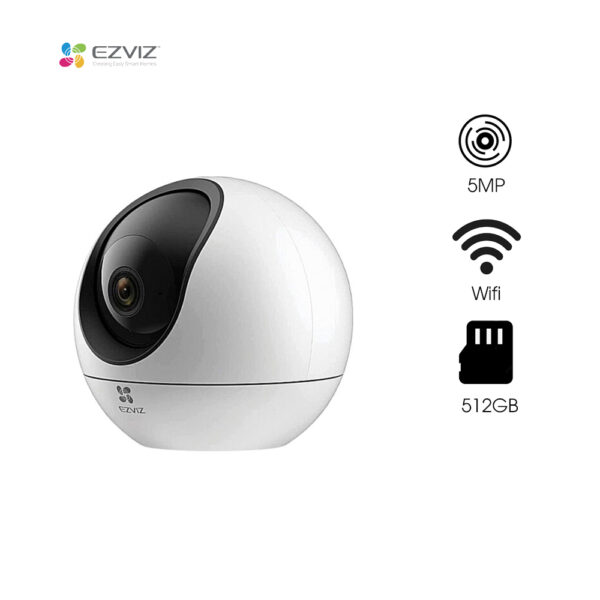

– 3K Smart Home PT AI Camera
– Cảm biến hình ảnh 1/2.7″ Progressive Scan CMOS
– Độ phân giải 2880 × 1620
– Ống kính 4mm@ F1.6, view angle:104° (Horizontal), 87° (Vertical), 53°(Diagonal)
– Xoay ngang: 353° , dọc: 133°
– Chống ngược sáng Digital WDR
– Công nghệ AI-Powered phát hiện người / vật nuôi / vẫy tay / âm thanh
– 1 cổng RJ45 × 1(10M/100M Adaptive Ethernet Port)
– Hỗ trợ đàm thoại 2 chiều
– Chuẩn nén H.265 tiết kiệm băng thông lưu trữ
– Nguồn: DC 5V/2A
– Hỗ trợ khe cắm MicroSD card (Max. 512 GB)
– Wi-Fi Standard IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
| Model | CS-H6-V100-1J5WF |
| Camera | |
| Image sensor | 1/2.7″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F1.6, view angle:104° (Horizontal), 87° (Vertical), 53°(Diagonal) |
| PT Angle | Pan: 353° , Tilt: 133° |
| Minimum Illumination | 0.51Lux @(F1.6, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Night Vision | 10m |
| Video & Audio | |
| Max. Resolution | 2880 × 1620 |
| Frame Rate | Max:25fps; Self-Adaptive during network transmission |
| Video Compression | H.265/H.264 |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 4Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G： 2400~2483.5MHz 5G： 5170~5250MHz， 5735 – 5835MHz |
| Channel Bandwidth | Support 40MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11Mbps， 11g 54Mbps， 11nHT20 MCS7， 11nHT40 MCS7； 11a 54Mbps， 11nHT20 MCS7， 11nHT40 MCS7； |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Function | |
| Smart Alarm | AI Human Detection \ Pet Detection \Wave-Hand Detection\Voice Activity Detection |
| Customized Alert Area | Supports |
| Two-way Talk | Supports ( Two Mic ) |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Micro SD card slot (Max. 512G) |
| Cloud Storage | EZVIZ Cloud Storage |
| General | |
| Operating Conditions | -10ºC ~ 45ºC ( 14°F to 113 °F ), Humidity 95% or less ( non-condensing) |
| Power Supply | DC 5V/2A（Type-C) |
| Power Consumption | MAX. 8W |
| Dimensions | 100mm x 100mm x 96.5mm |
| Packaging Dimensions | 115.5mmx116mmx160 mm |
| Weight | Product: 255g With Package: 487 |
